Spesifikasi Rumah Baru
Spesifikasi Rumah
| ROOF | DESCRIPTION | IMAGE |
|---|---|---|

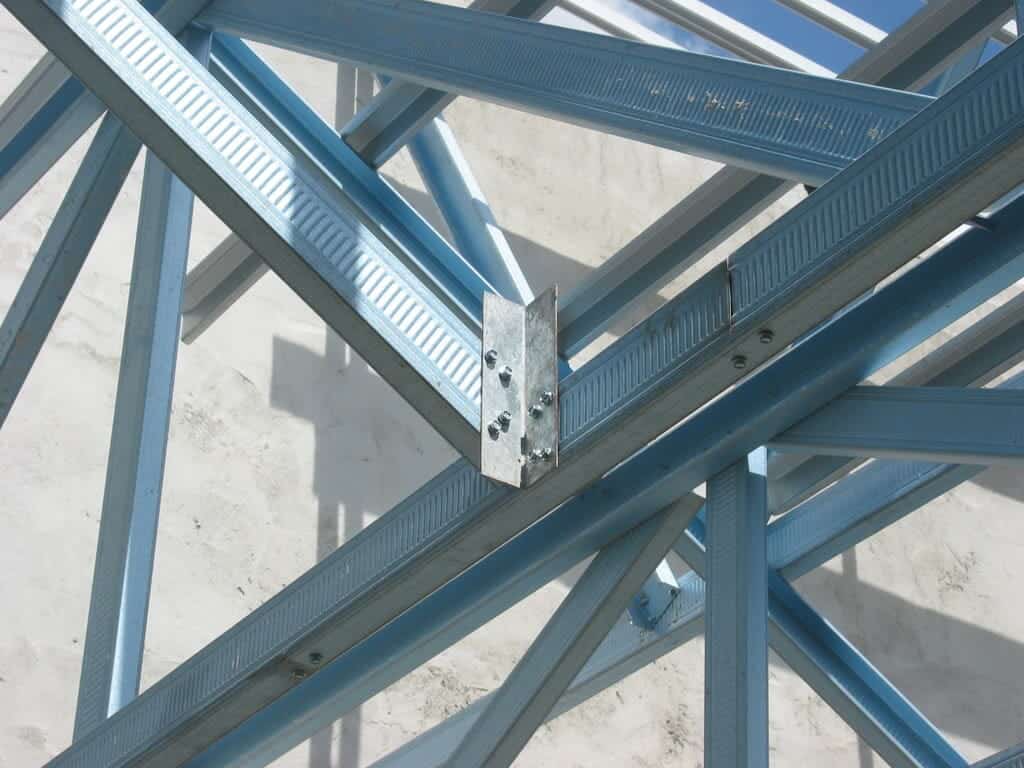

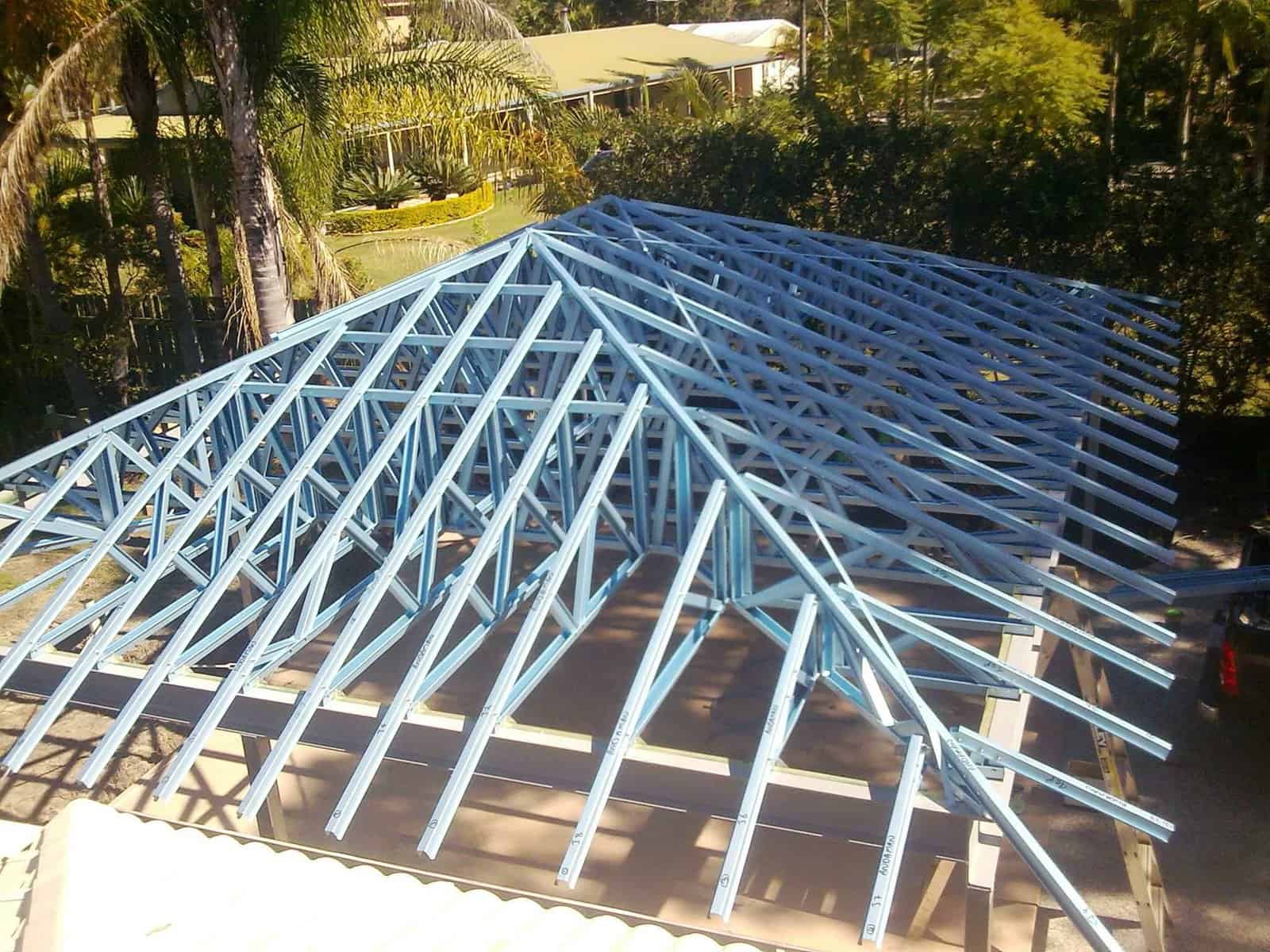

| Roof Truss | Light Weight Roof Truss |   14.1.2 14.1.2 |

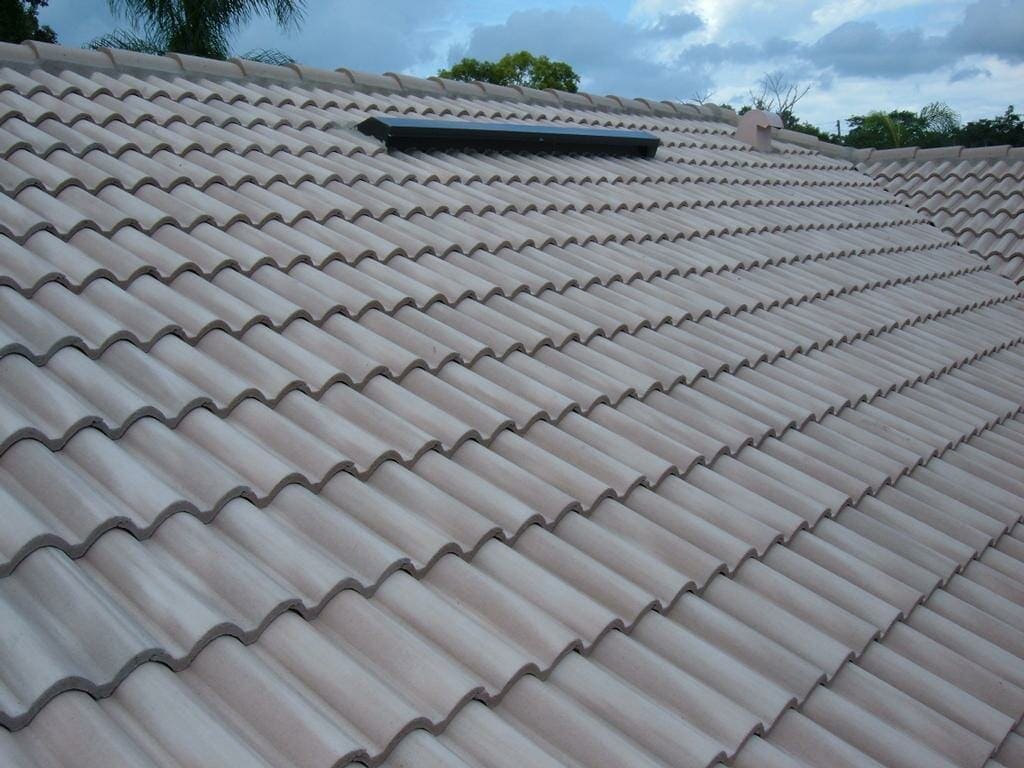

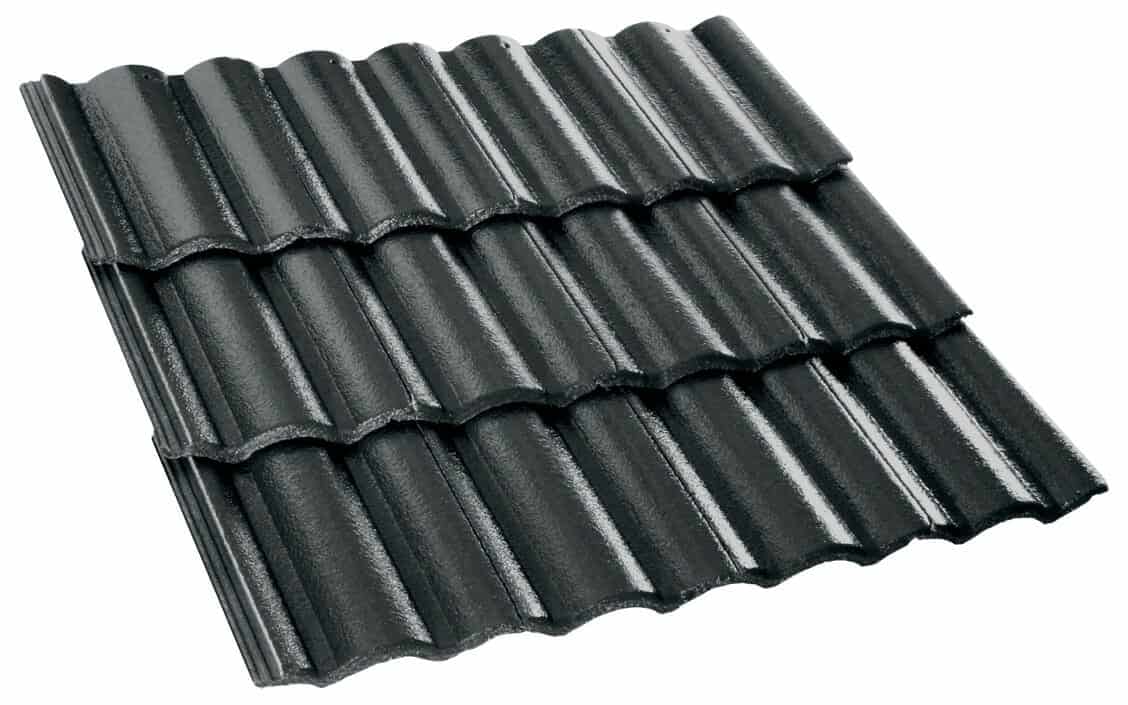

| Roof Tiles | Monier of Equivalent Concrete Roof Tiles (Standard Color) |   14.2.1 14.2.1 |

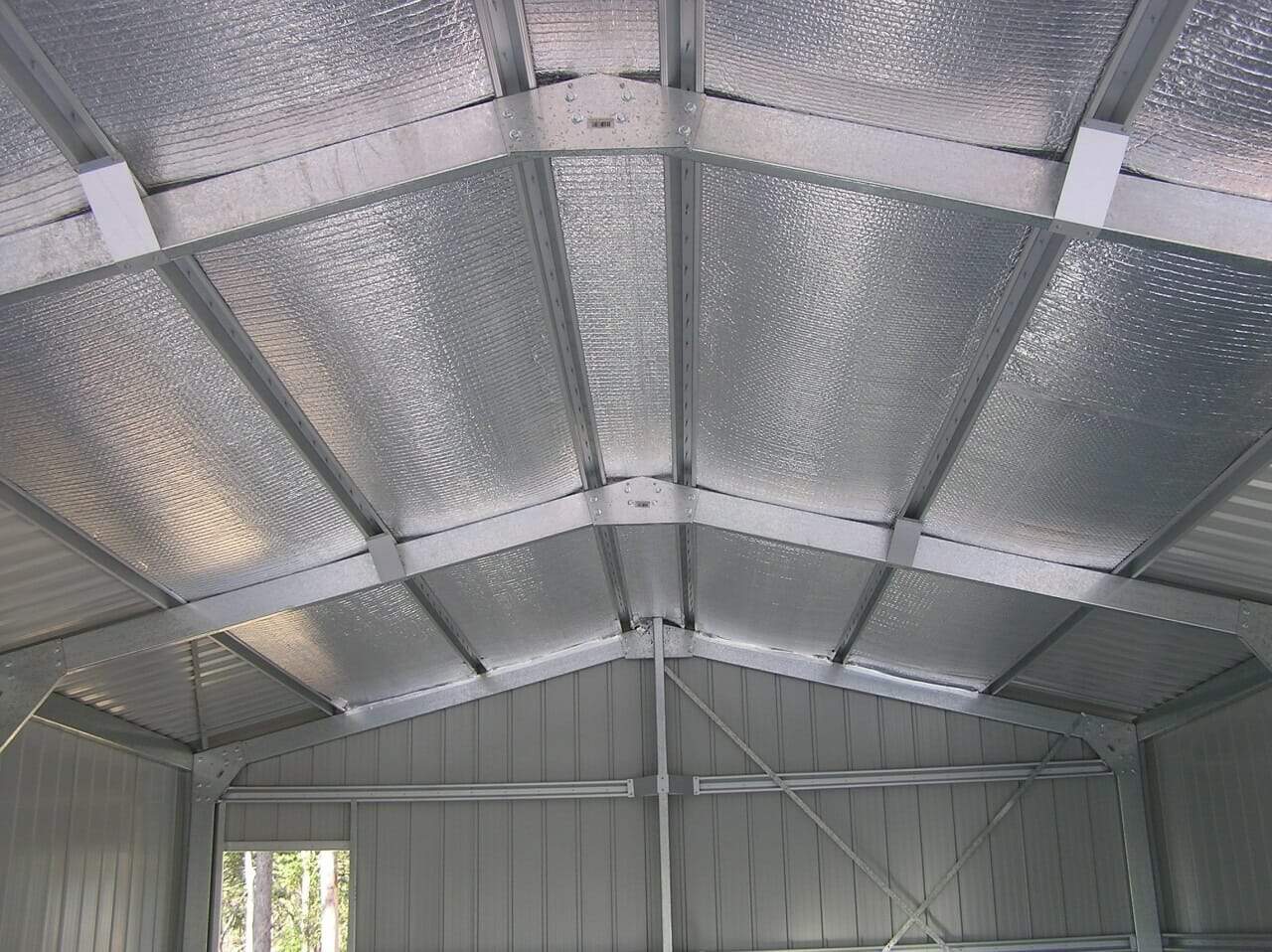

| Roof Insulation | Aluminium Foil |   14.3.2 14.3.2 |
| FLOOR TILE | DESCRIPTION | IMAGE |
|---|---|---|

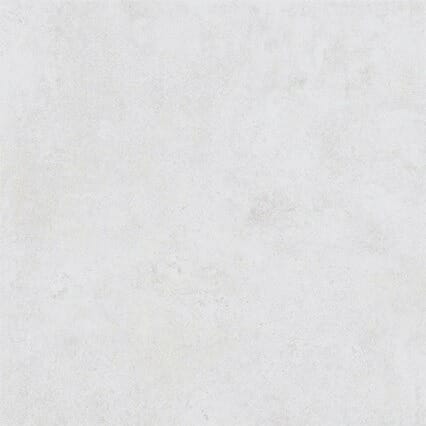

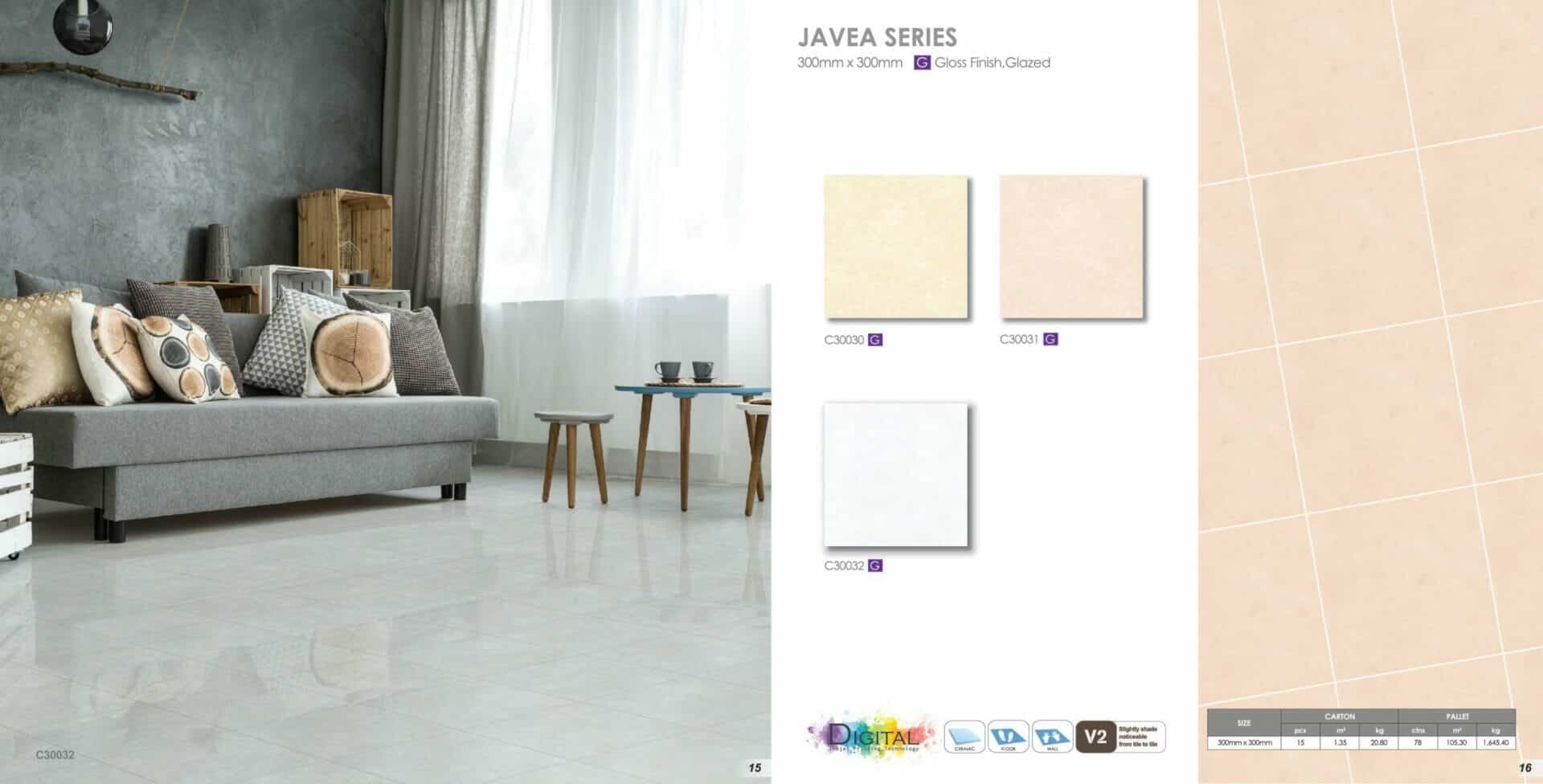

| Bedroom/ Utility | Ceramic Tiles 1'x1' (White Horse C30032) |   javea series javea series  2017.07.03 ceramic floor tiles 300x300mm 0 Page9 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 |

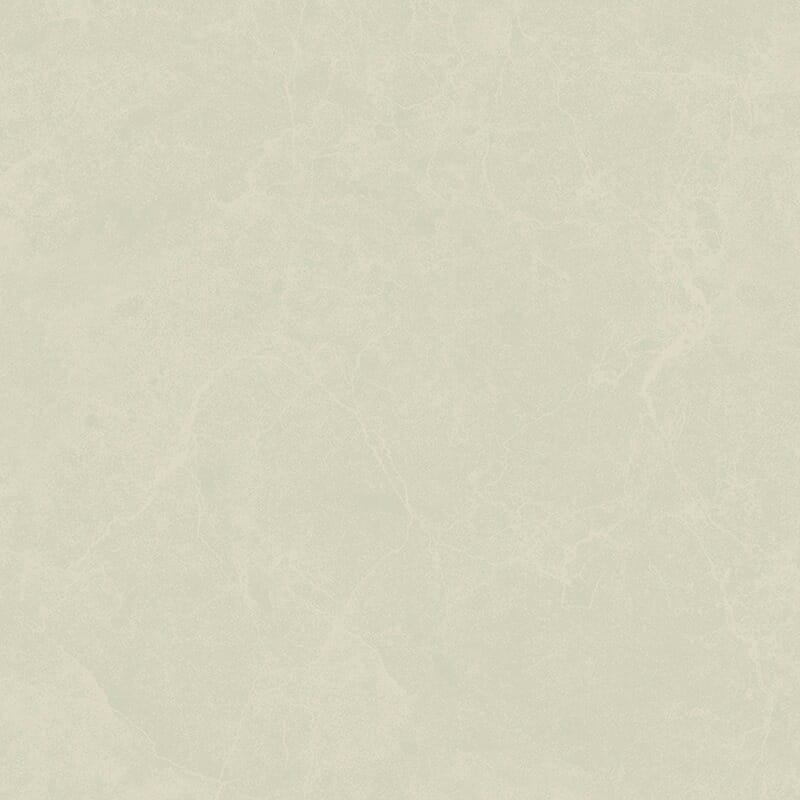

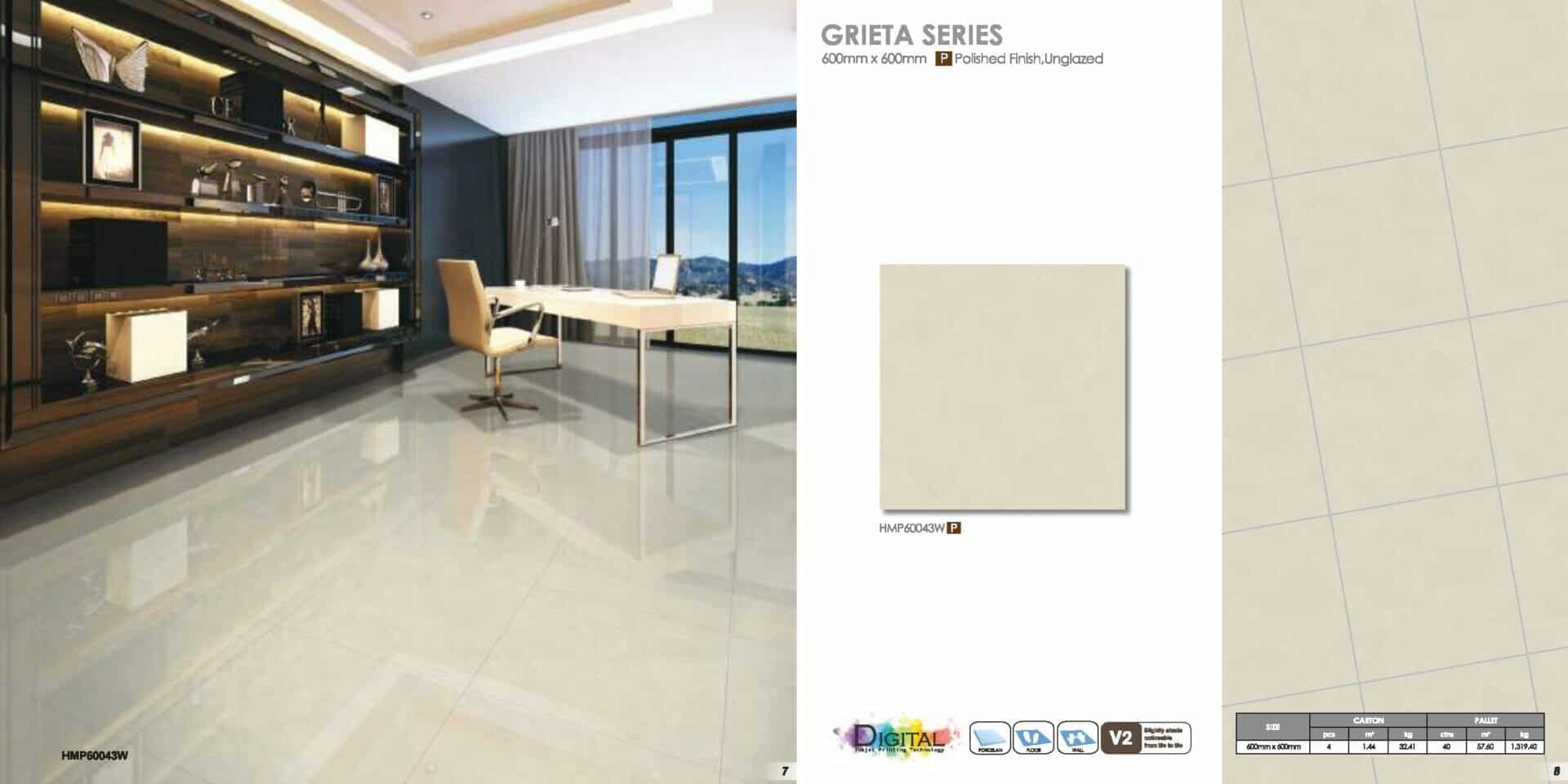

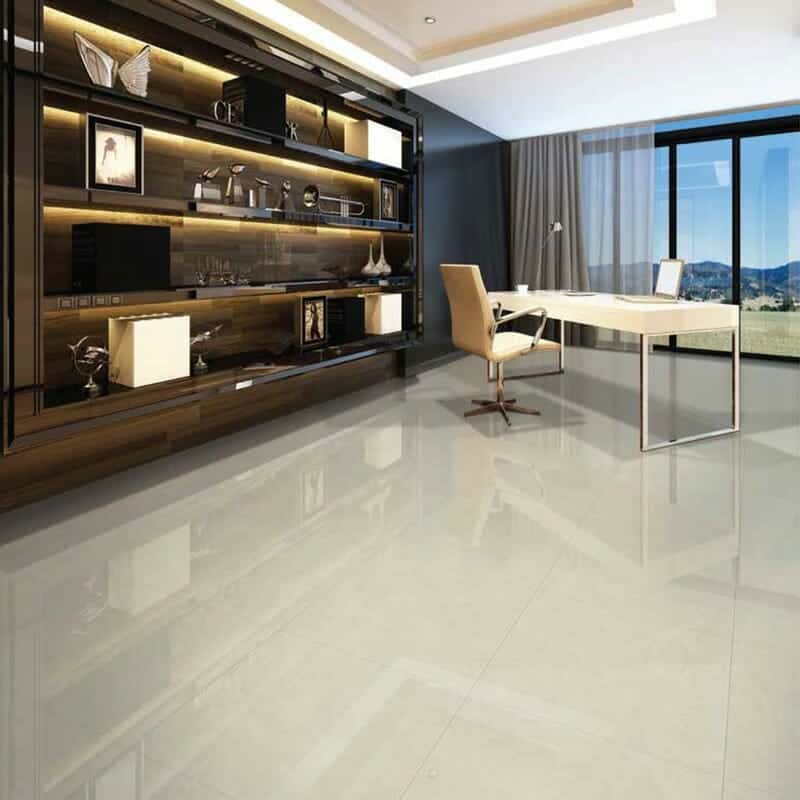

| Living/ Dining/ Family/ Staicase/ Kitchen Top | Porcelain Tiles 2'x2' (White Horse HMP60043) |   grieta series grieta series  2017 11 01 polished porcelain tiles 600x600mm 5 Page5 2017 11 01 polished porcelain tiles 600x600mm 5 Page5 |
| Bathrooms | Ceramic Tiles 1'x1' (White Horse C30062) | javea series javea series 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 |

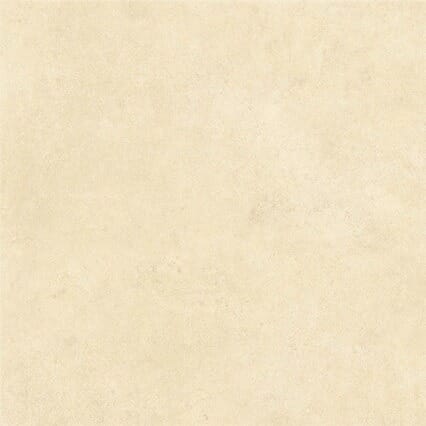

| Kitchen | Ceramic Tiles 1'x1' (White Horse C30030) |  2017.07.03 ceramic floor tiles 300x300mm 0 Page9 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 javea series javea series |

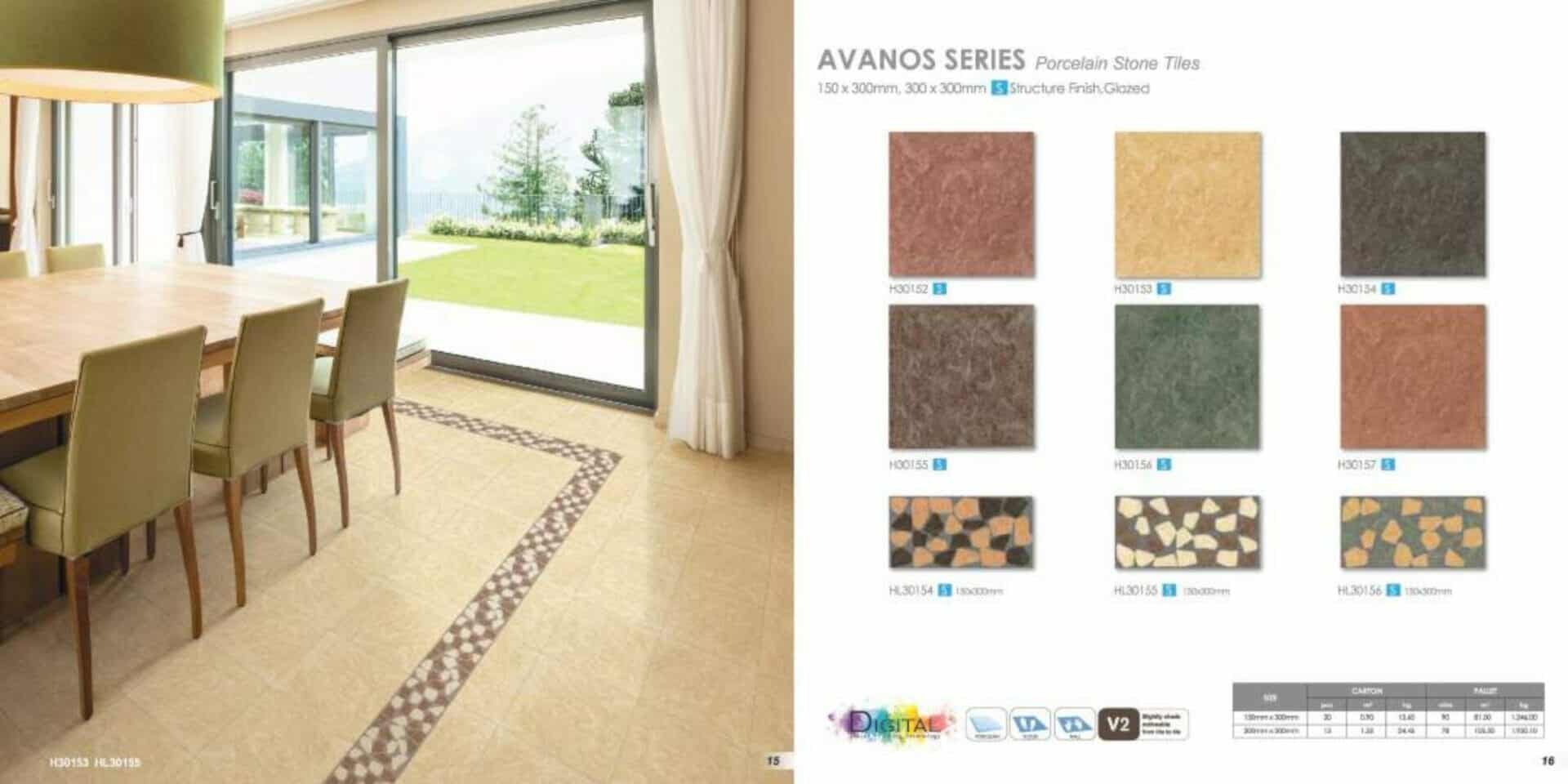

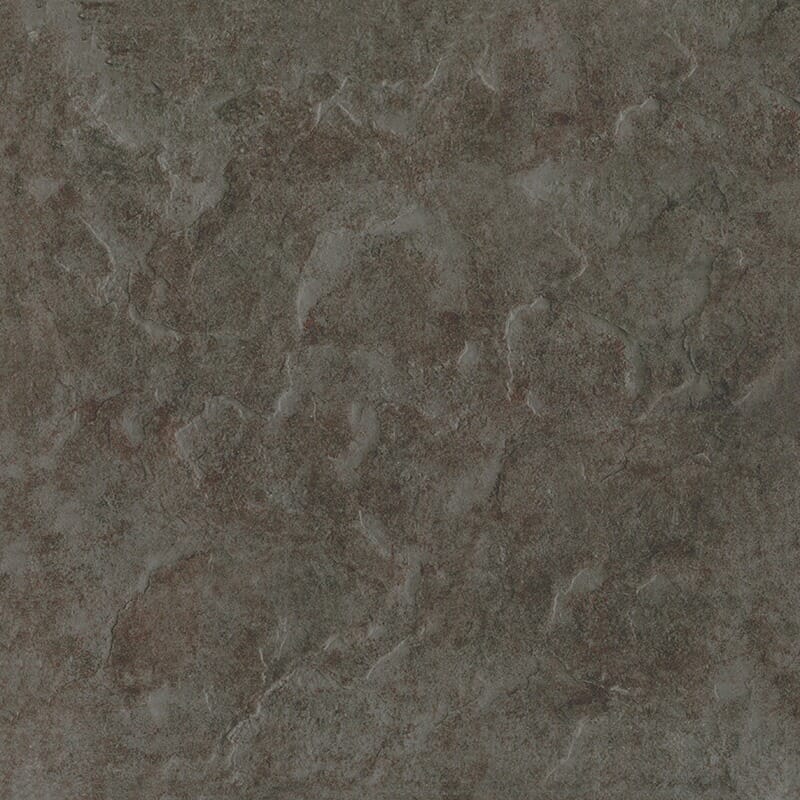

| Terrace/ Verandah/ Balcony/ Yard/ Car Porch | Homogenous Anti Slip Tiles 1'x1' (White Horse H30154) |   2017.06.22 porcelain stone granite tiles 300x300mm ilovepdf compressed 1 2017.06.22 porcelain stone granite tiles 300x300mm ilovepdf compressed 1 |
| WALL TILE | DESCRIPTION | IMAGE |
|---|---|---|

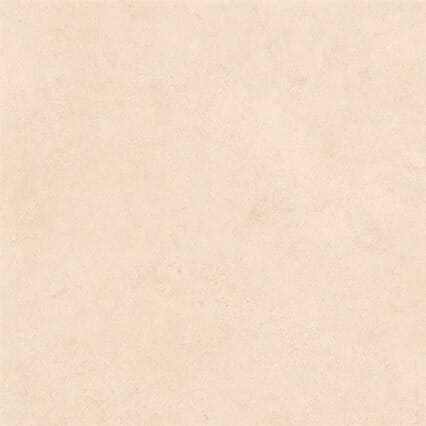

| Kitchen | Ceramic Tiles 1'x1'x5'(H) (White Horse C30031) |  javea series javea series 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 |
| Bathrooms | Ceramic Tiles 1'x1'x5'(H) (White Horse C30060) |  javea series javea series 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 2017.07.03 ceramic floor tiles 300x300mm 0 Page9 |
| WINDOW | DESCRIPTION | IMAGE |
|---|---|---|

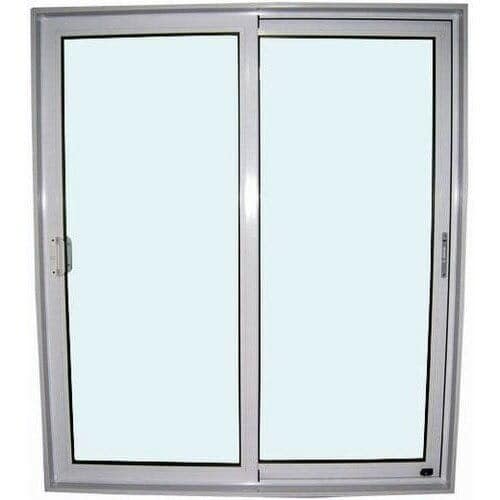

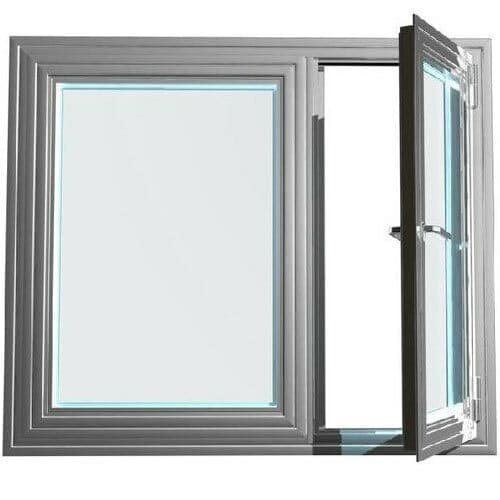

| Window Frame | Anordised Aluminium |   17.1.2 17.1.2 |

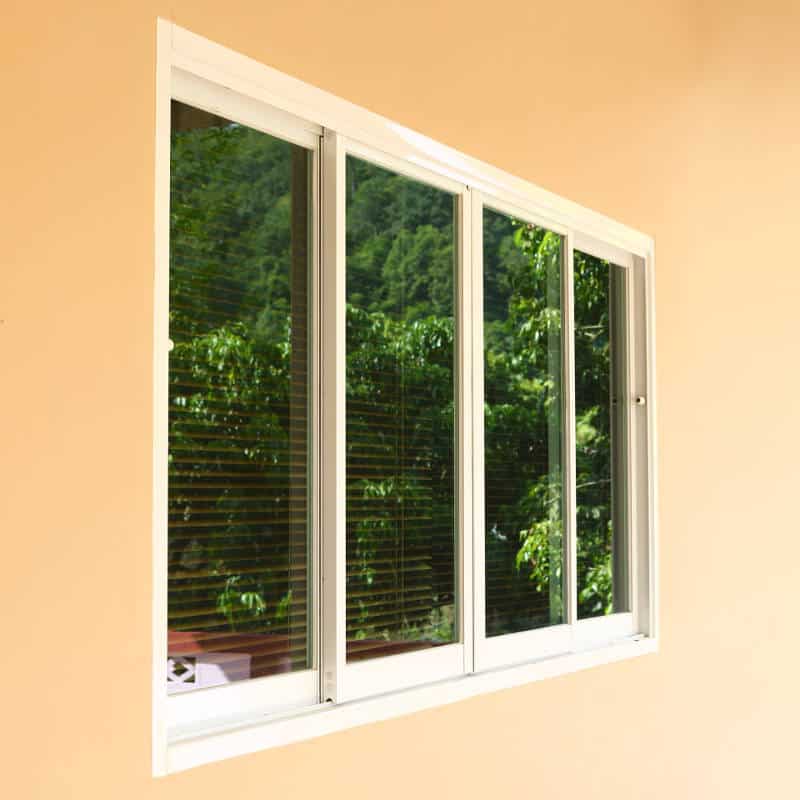

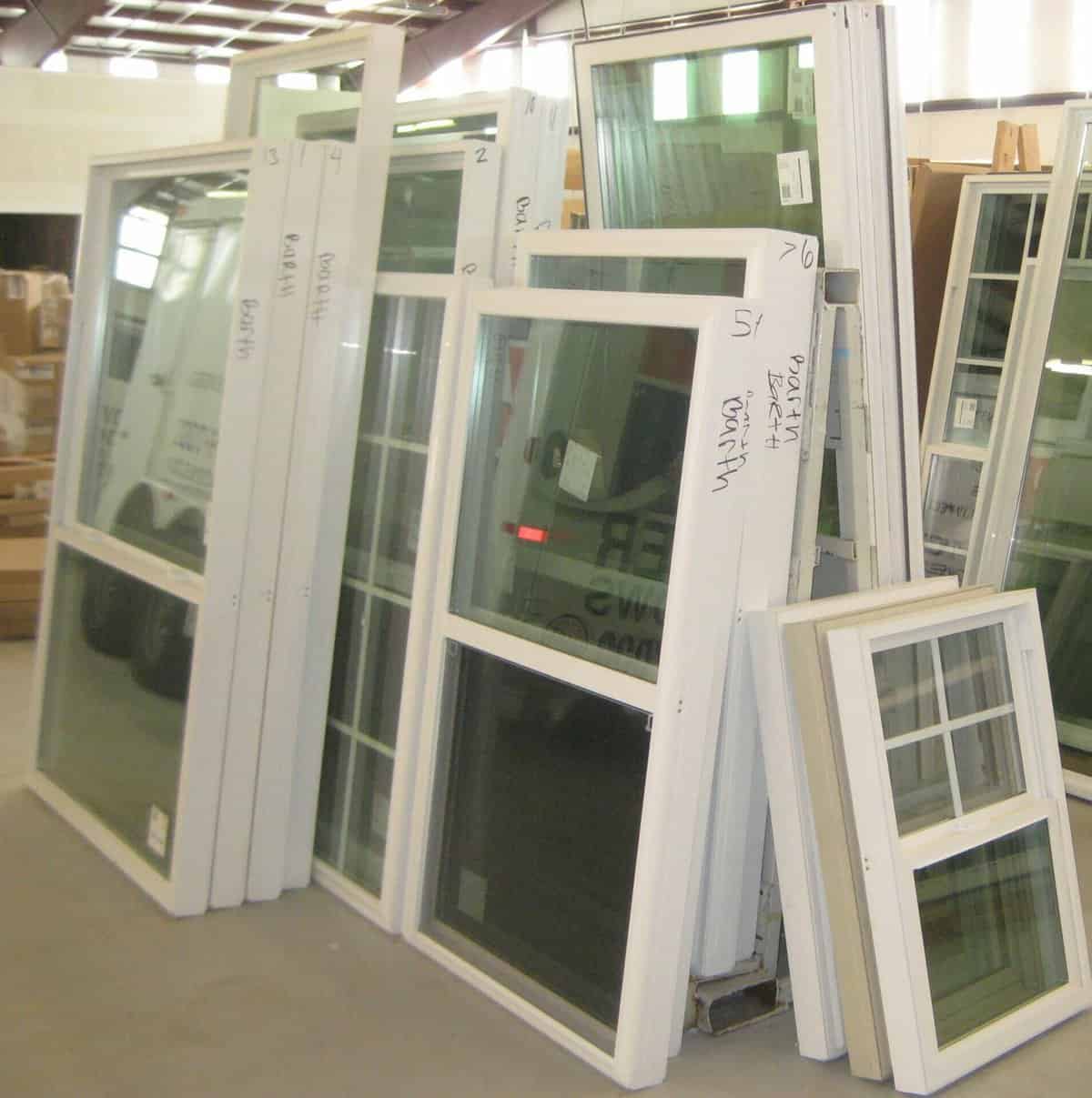

| Window Glass | 5mm Thick Clear Glass |   17.2.2 17.2.2 |

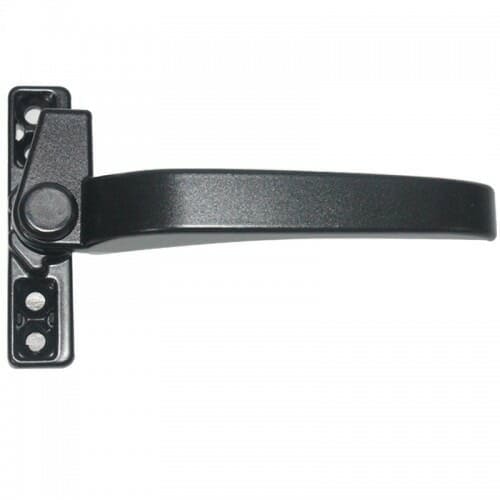

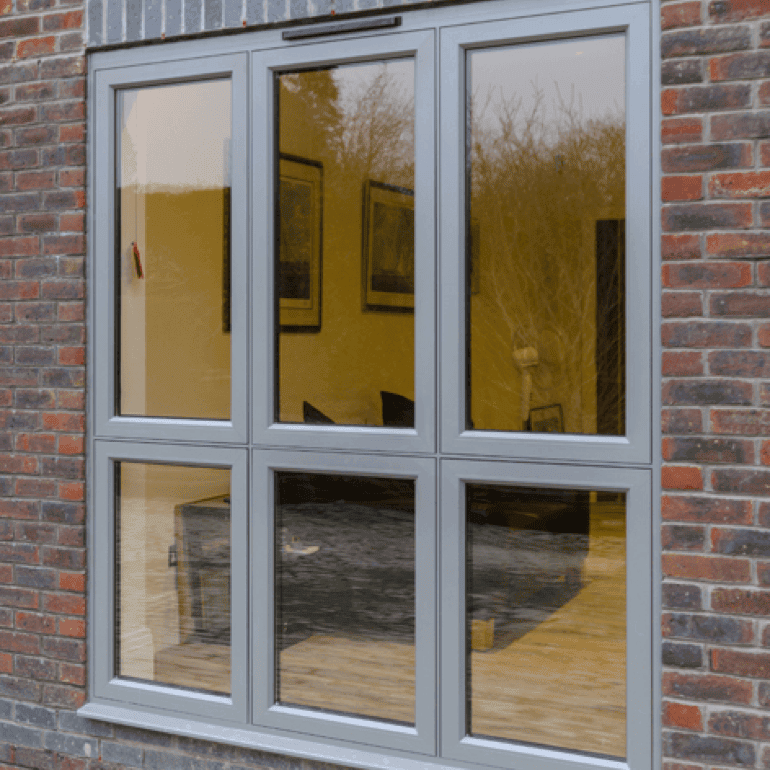

| Bedrooms/ Living/ Dining/ Laundry/ Kitchen | Size 1200x1200mm/ 600x1200mm (Anordise Aluminium Frame Casement) |   17.3.2 17.3.2 |

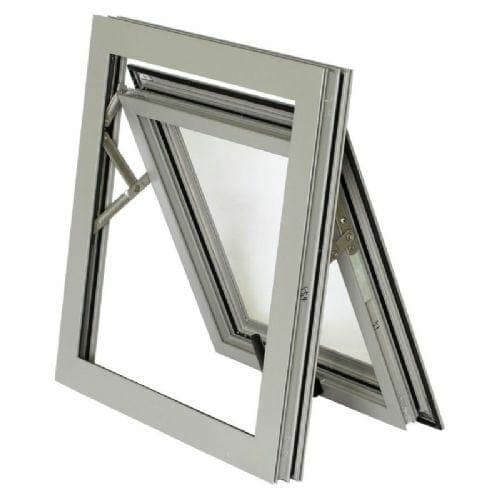

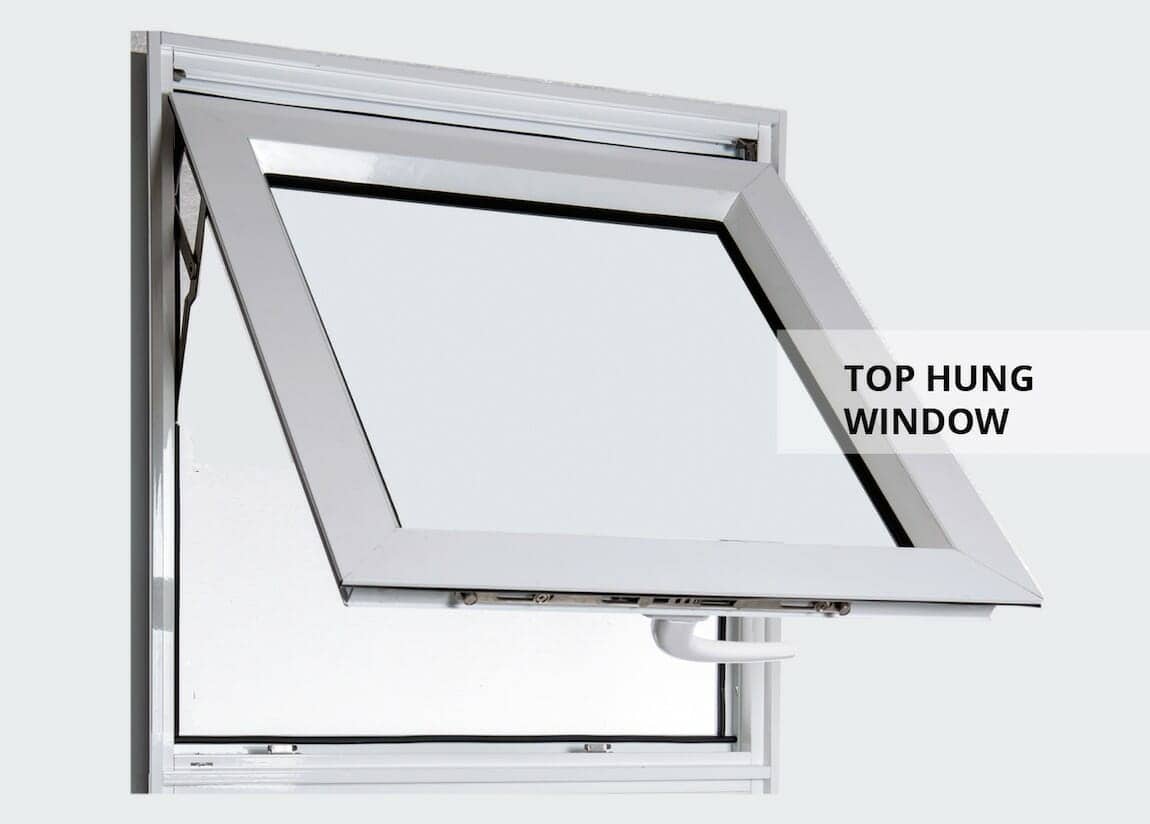

| Bathrooms | Size 600x600mm (Anordise Aluminium Frame Top Hung) |   17.4.1 17.4.1 |
| DOOR | DESCRIPTION | IMAGE |
|---|---|---|

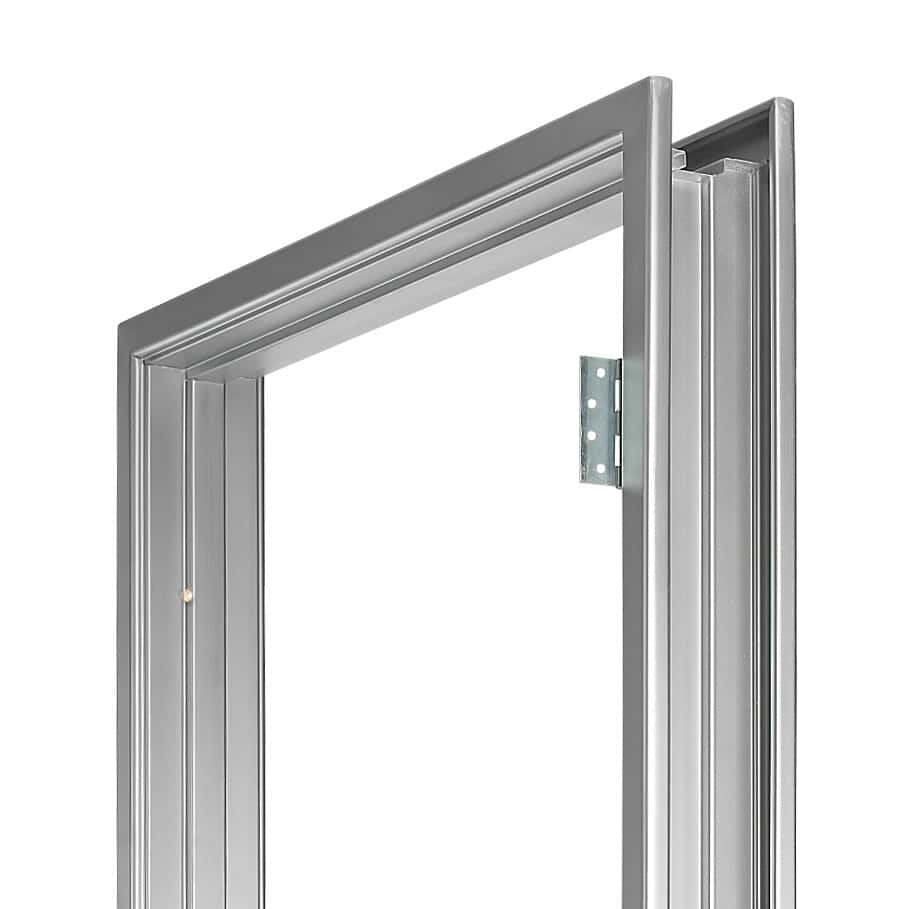

| Door Frame | E.G. Steel Frame |  |
| Entrance | Size 1500x2100mm Double Leaf Solid Door 6mm Melamine Finish |   18.3.2 18.3.2 |
| Bedrooms | Size 900x2100mm Single Leaf Door (Honey Comb) 6mm | 18.3.1 18.3.1 |
| Kitchen | Size 900x2100mm Single Leaf Solid Door 6mm Melamine Finish | 18.3.2 18.3.2 |
| Bathrooms | Size 750x2100mm Single Leaf Aluminium Door c/w Alucabond Panel | 18.3.1 18.3.1 |

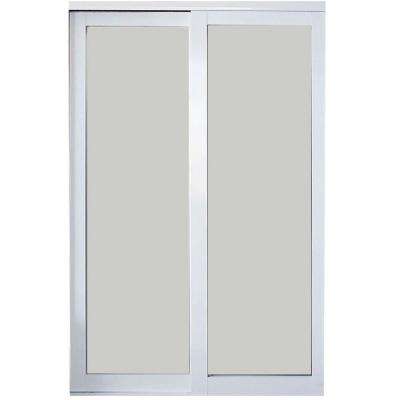

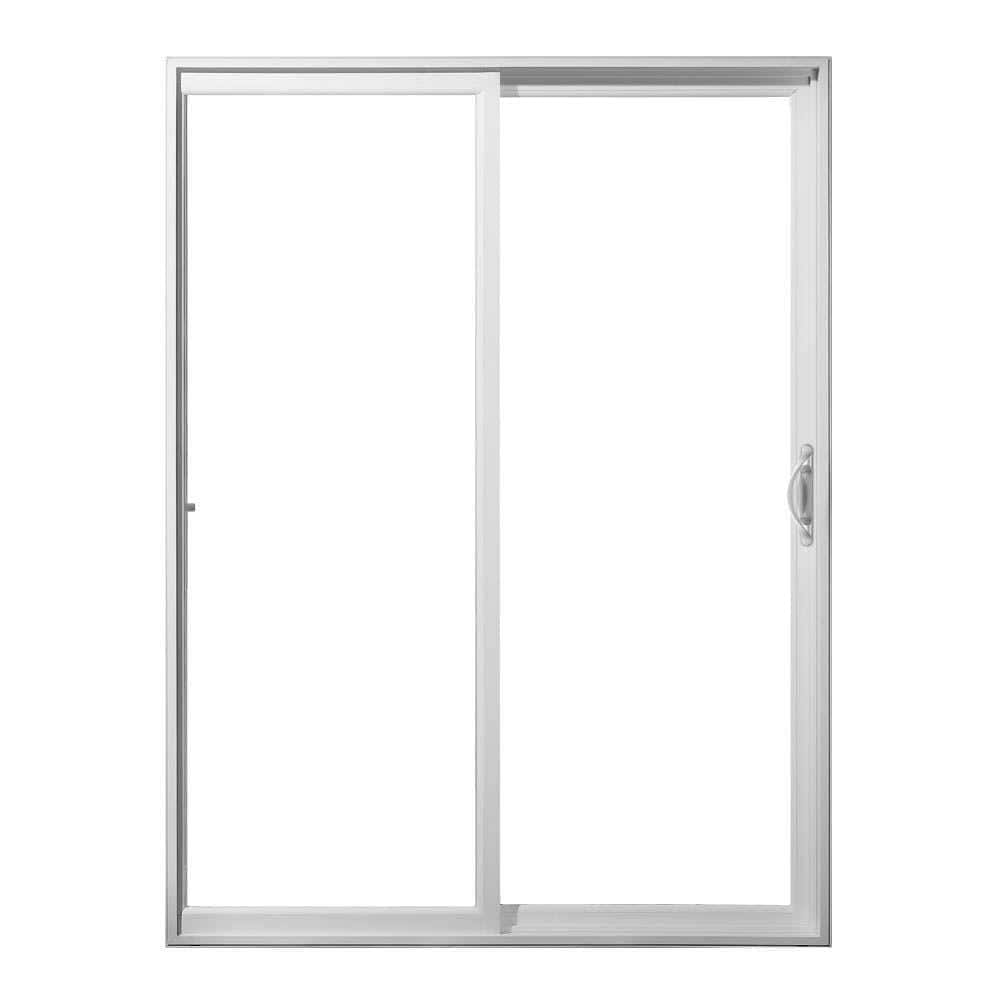

| Dining/ Living/ Family | Size 1800x2100mm Double Leaf Aluminium Sliding Glass Door |   18.6.2 18.6.2 |
| TANK | DESCRIPTION | IMAGE |
|---|---|---|

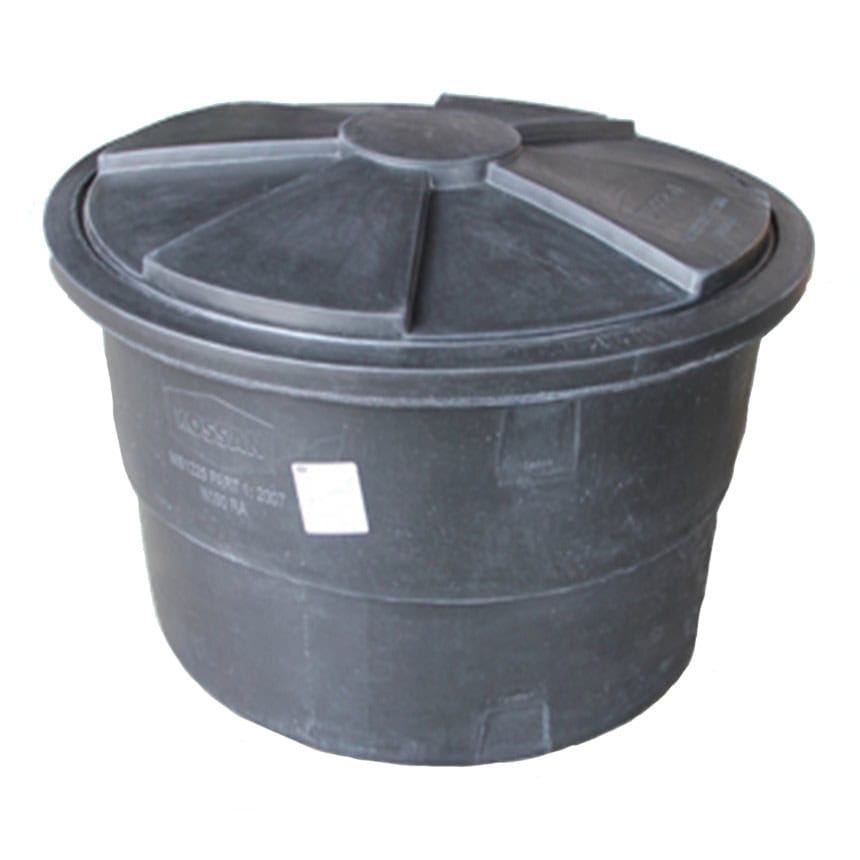

| Water Tank | Weida or Equivalent |  |

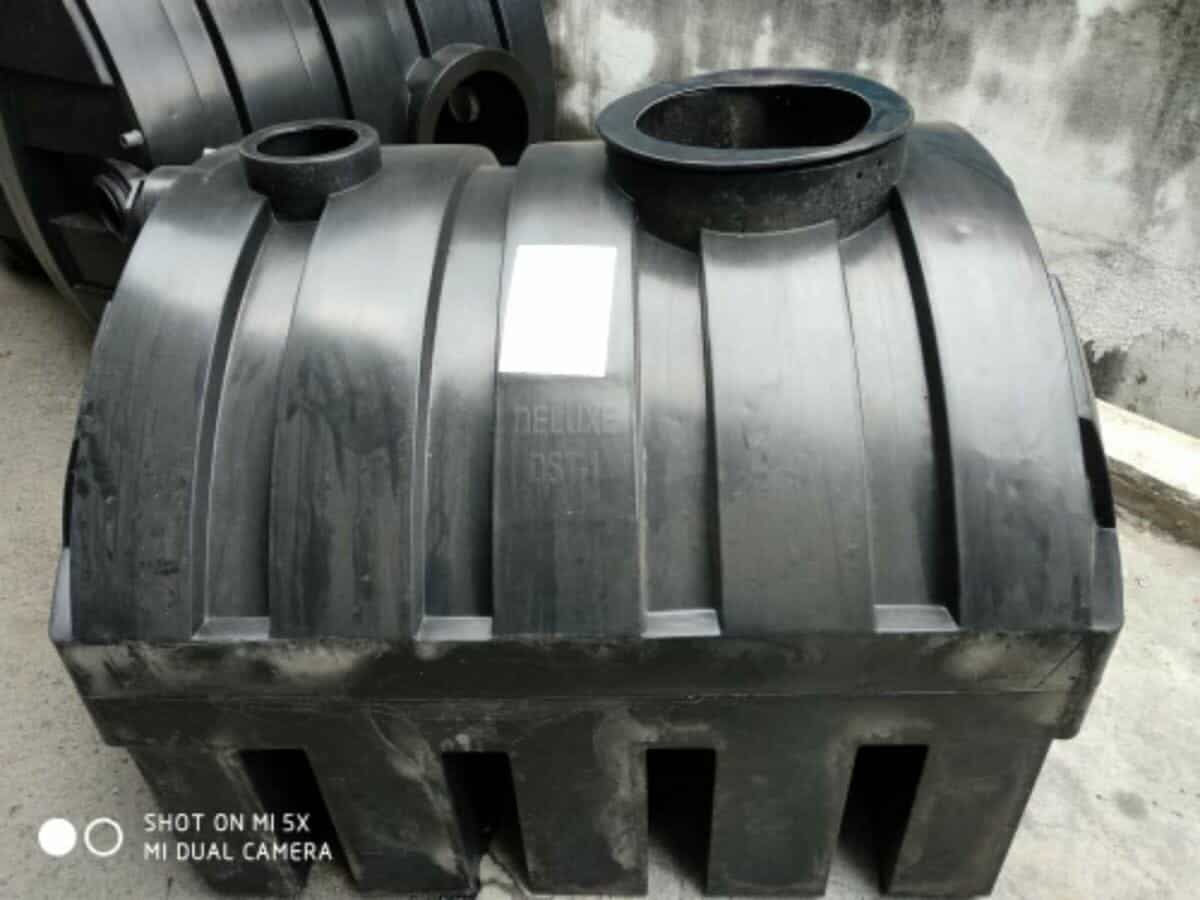

| Septic Tank | Mui Fatt PE6 or Equivalent |  |
| SANITARY FITTING | DESCRIPTION | IMAGE |
|---|---|---|

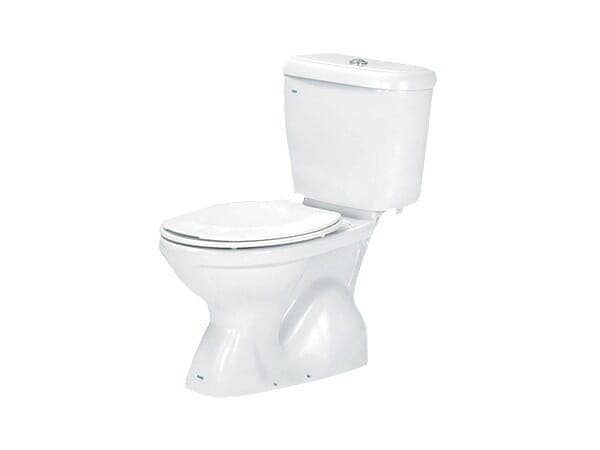

| Pedestal WC | Inno or Equivalent |  |

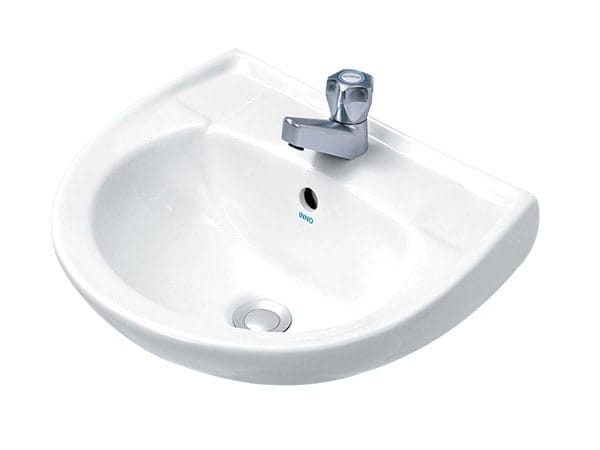

| Wash Basin | Inno or Equivalent |  |

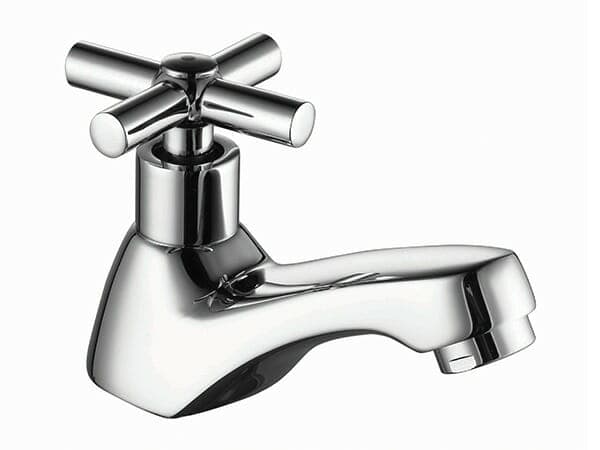

| Pillar Tap | Inno or Equivalent |  |

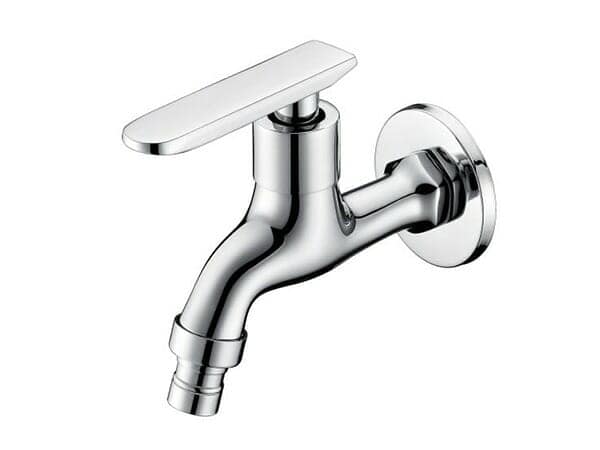

| Bib Tap | Inno or Equivalent |  |
| Sink Tap | Inno or Equivalent |  |

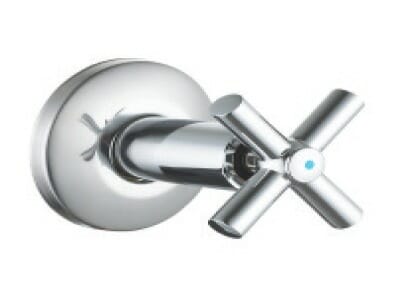

| Shower Stop Cock | Inno or Equivalent |  |

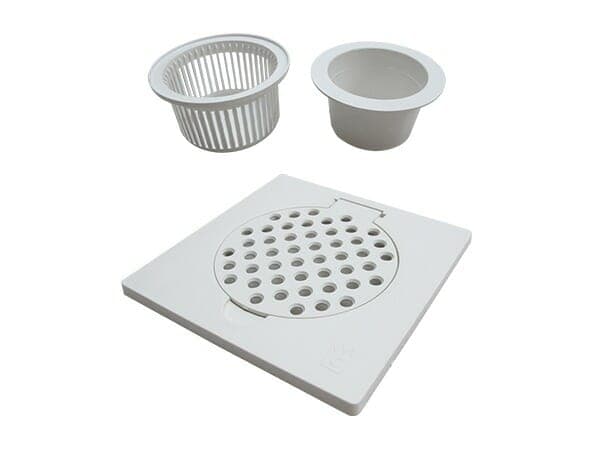

| PVC Floor Trap | Inno or Equivalent |  |

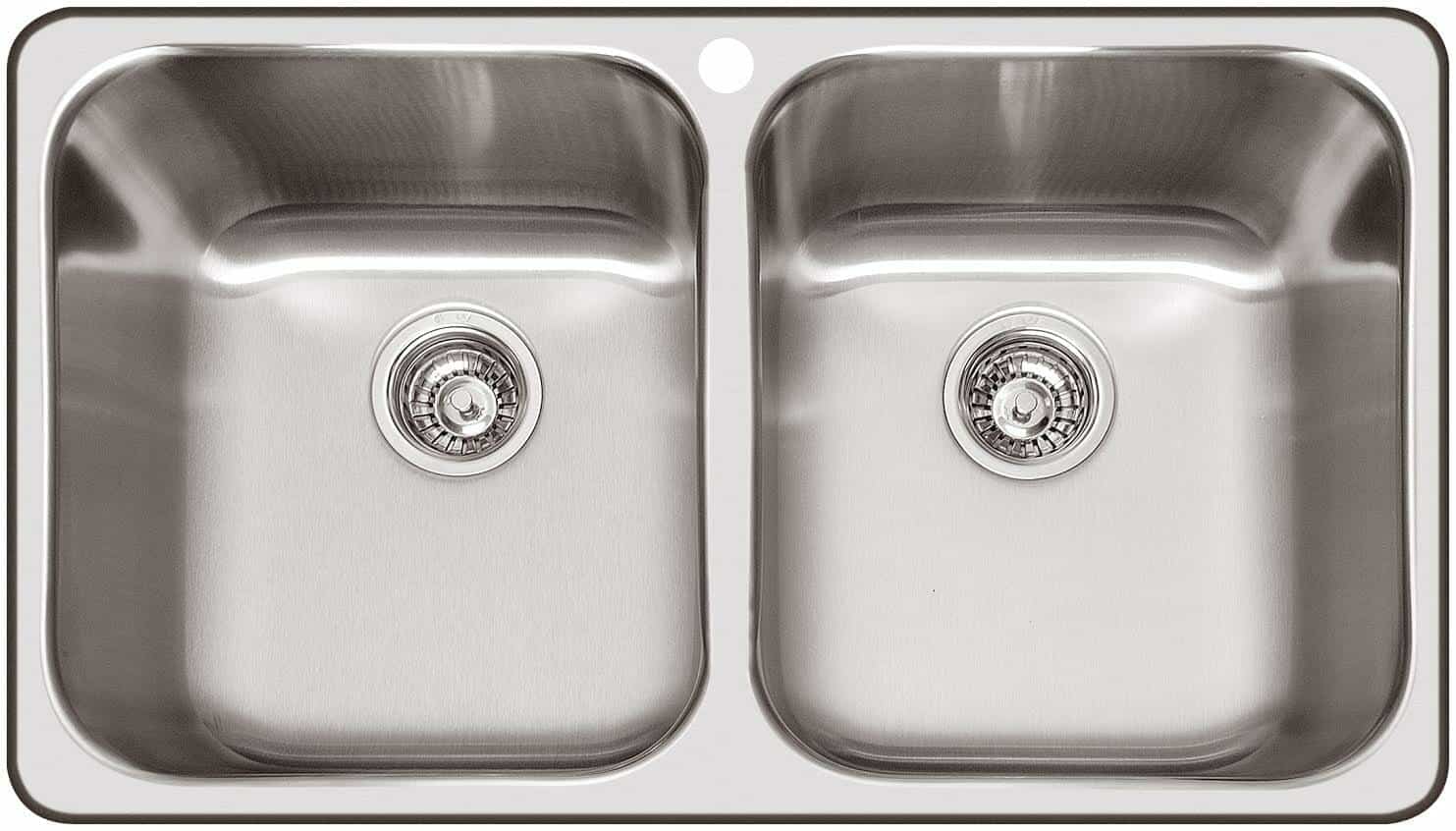

| Kitchen Sink (Double Bowl) | Cam or Equivalent |  |
| PAINTING | DESCRIPTION | IMAGE |
|---|---|---|

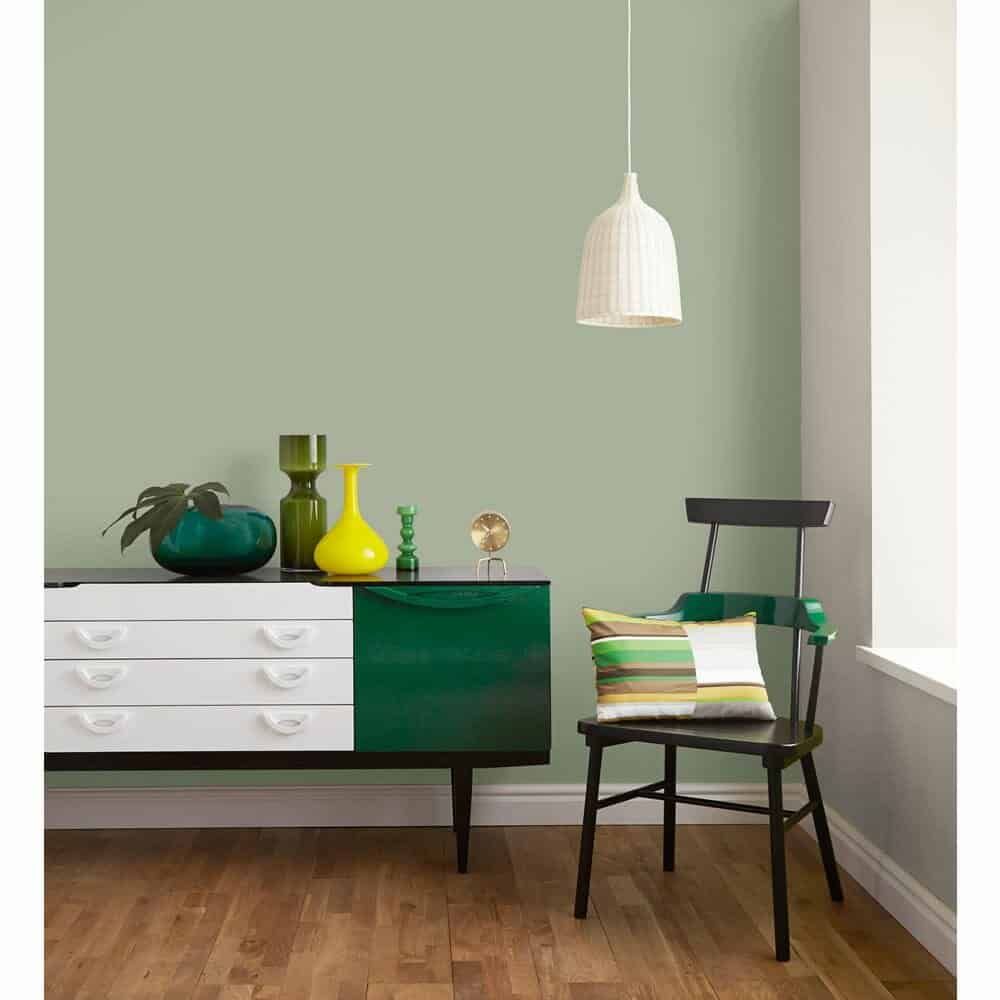

| Internal Surfaces | MCC Emulsion Paint (Standard Colour) |   21.1.2 21.1.2  21.1.3 21.1.3 |
| External Surfaces | MCC Wheathercoat Paint (Standard Colour) |   21.2.2 21.2.2  21.2.3 21.2.3 |

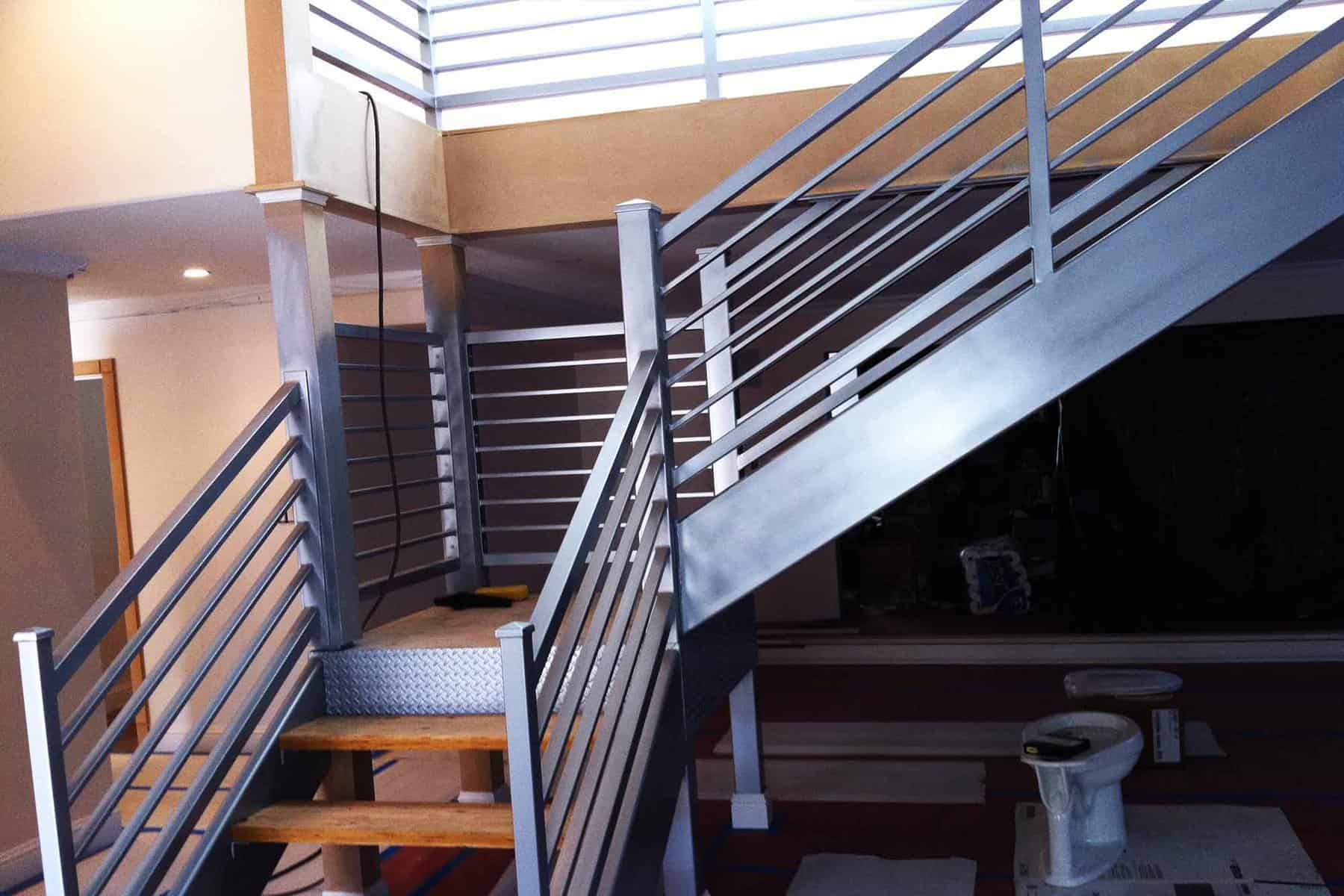

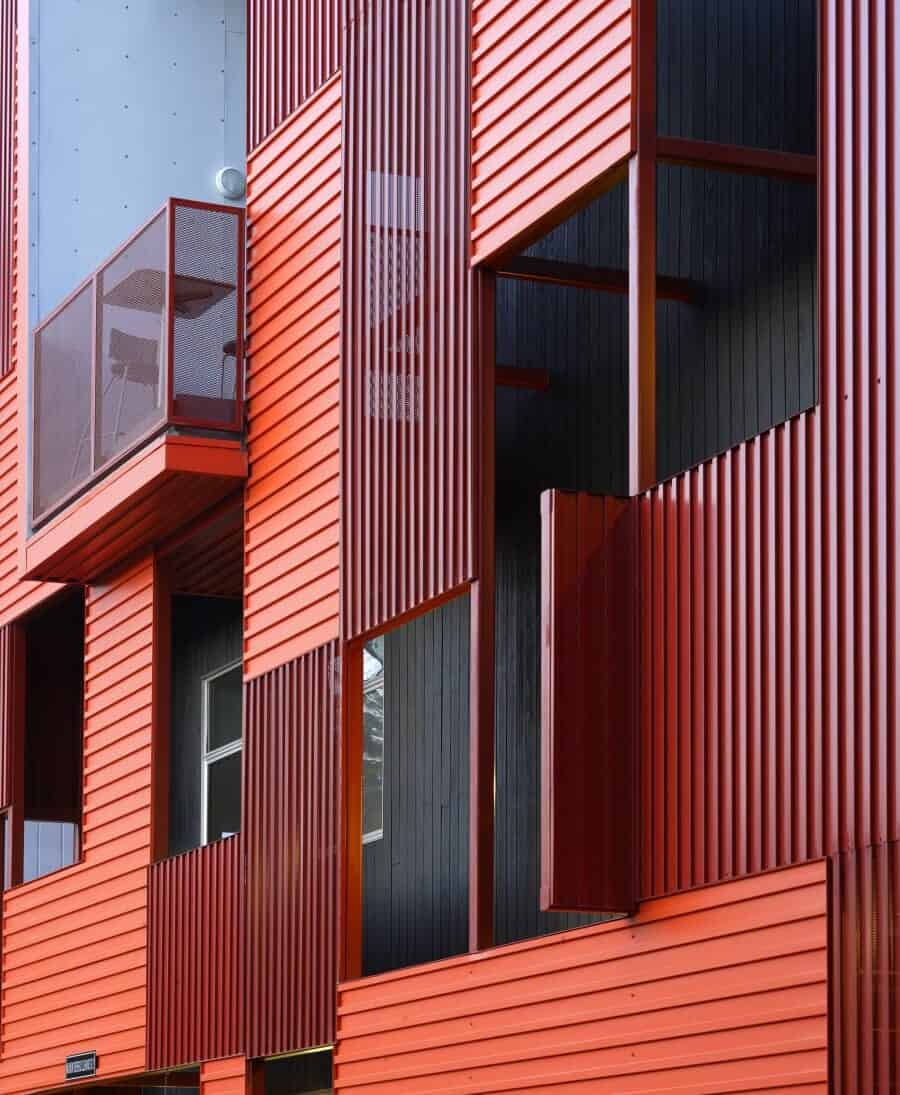

| Steel & Timber Surfaces | MCC Enamel Paint (Standard Colour) |   21.3.1 21.3.1 |
| M & E | DESCRIPTION | IMAGE |
|---|---|---|

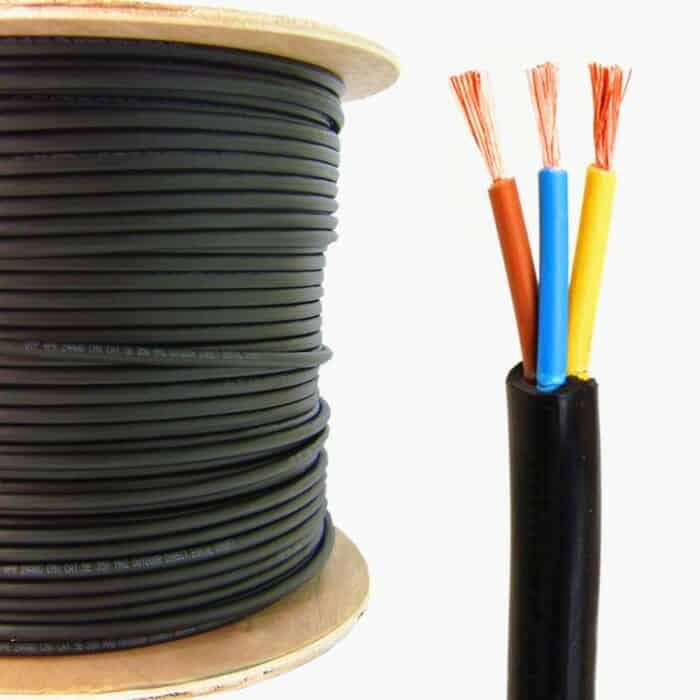

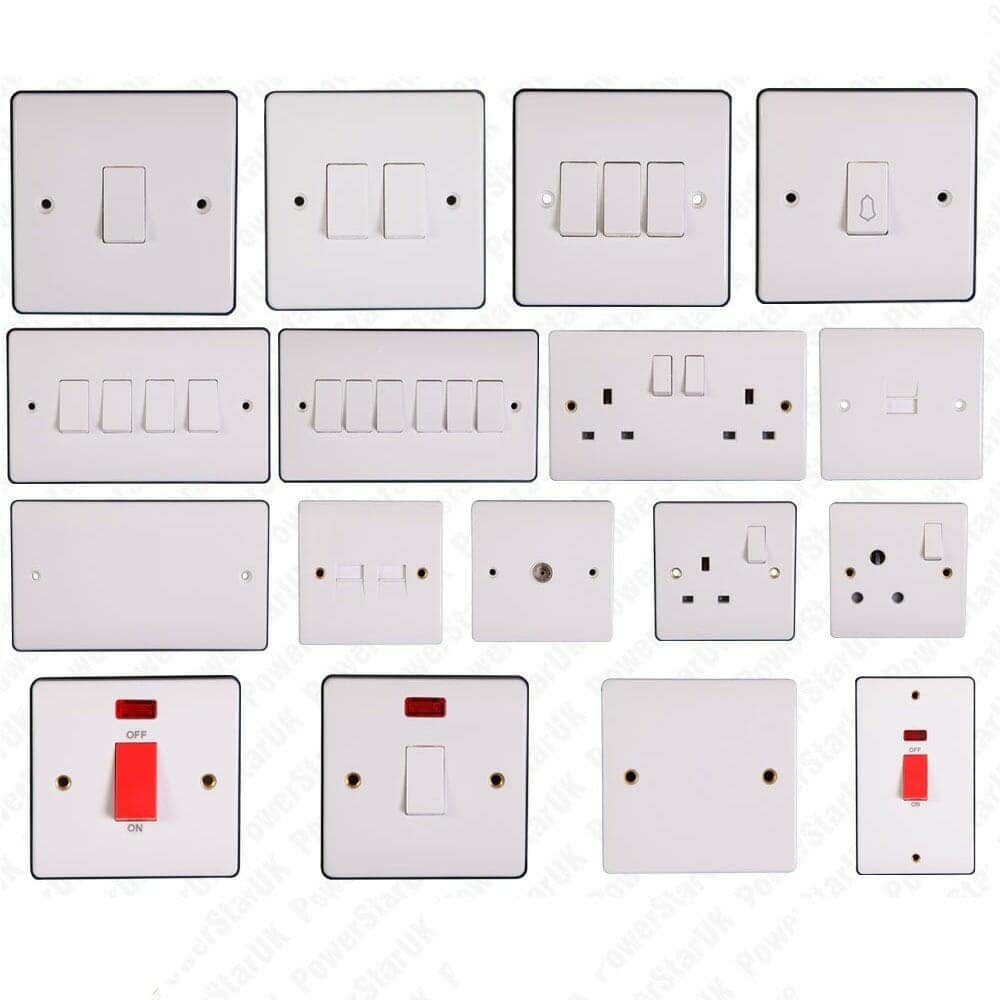

| Electric Wire & Fitting | Hero or Equivalent |   22.1 M&E 22.1 M&E |

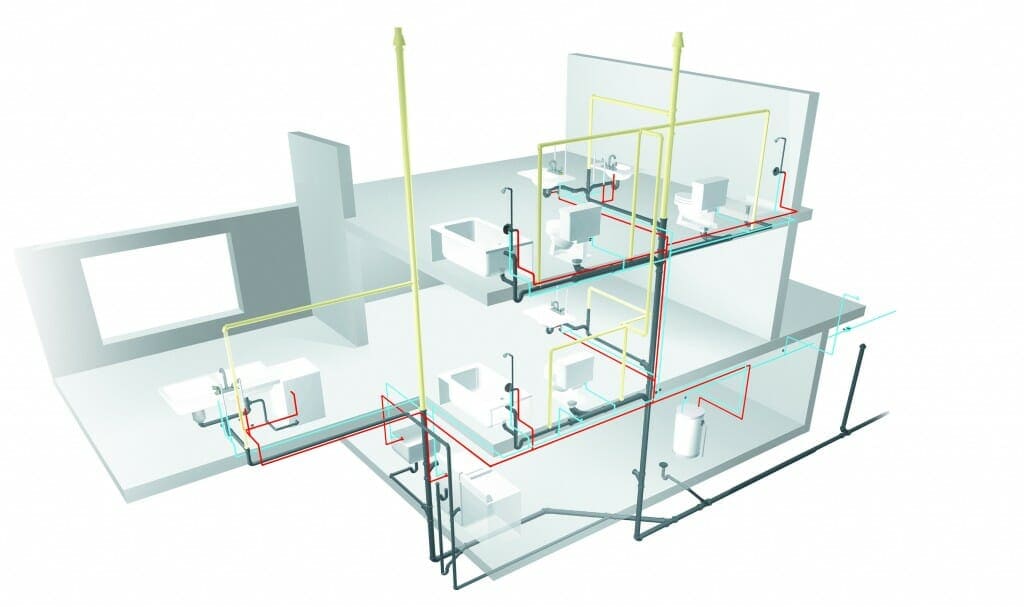

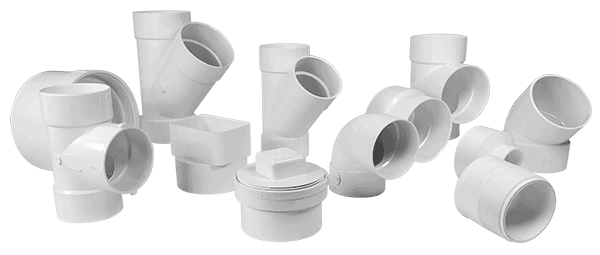

| Plumbing & Sanitary Piping | Hansen/ PVC Class 6 or Equivalent |   22.2.2 22.2.2 |
| OTHER | DESCRIPTION | IMAGE |
|---|---|---|

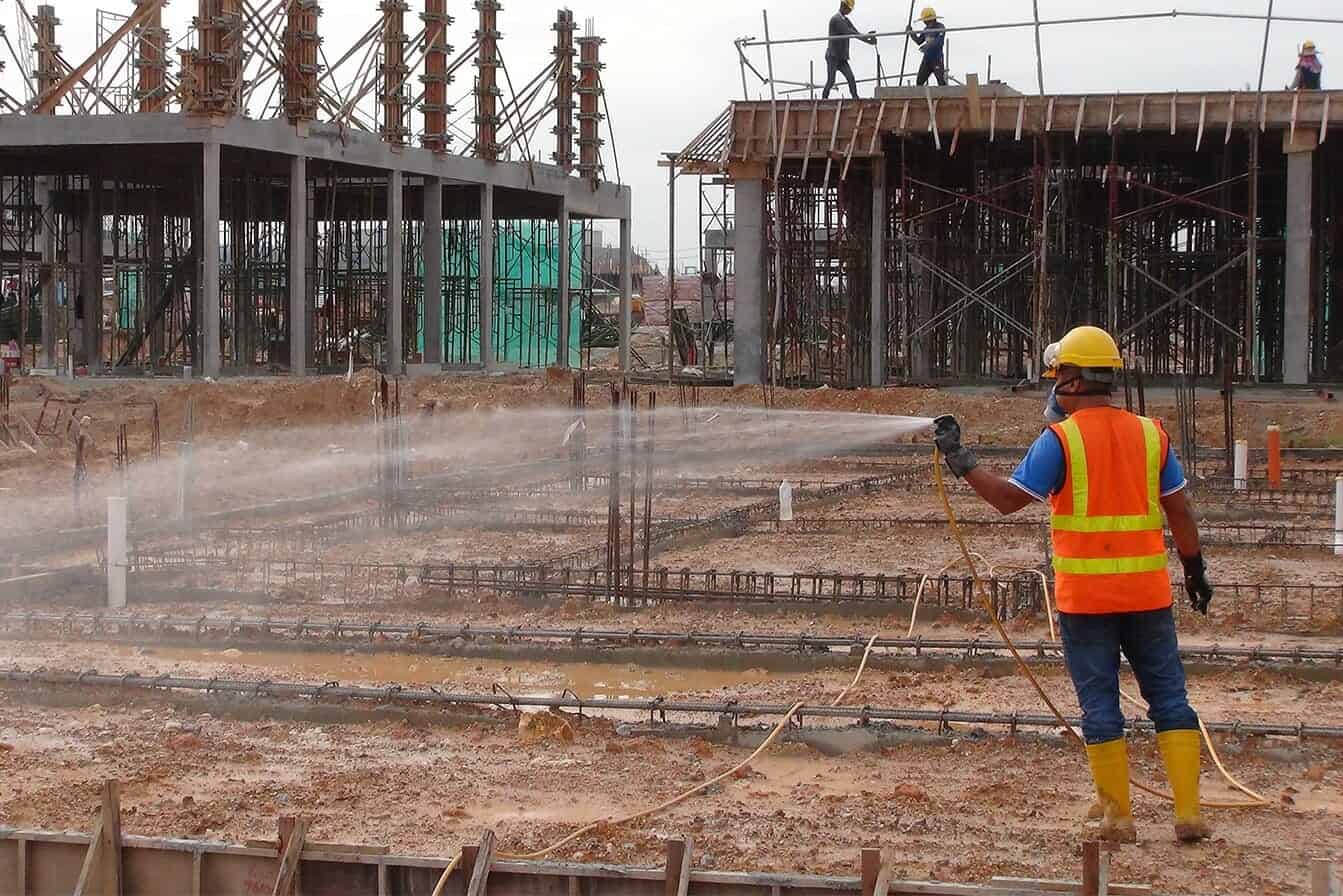

| Anti Termite | MCC |   23.1.2 23.1.2 |

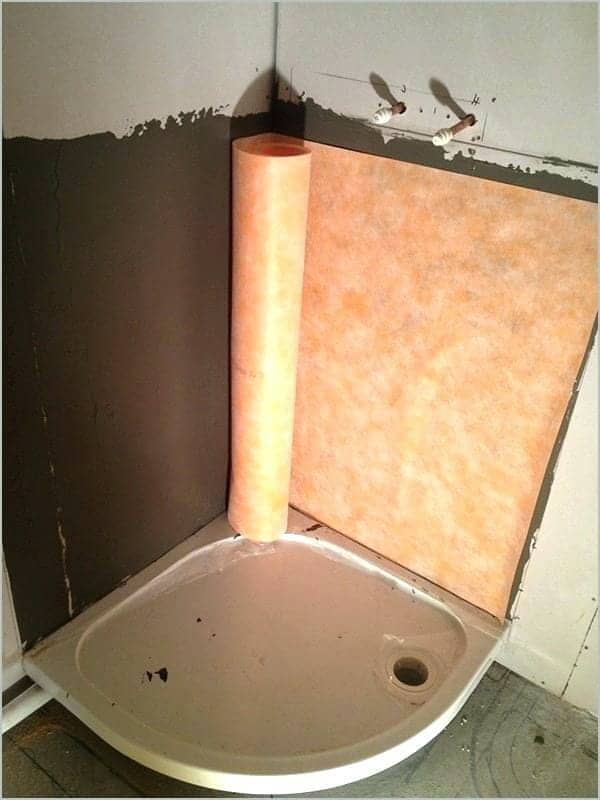

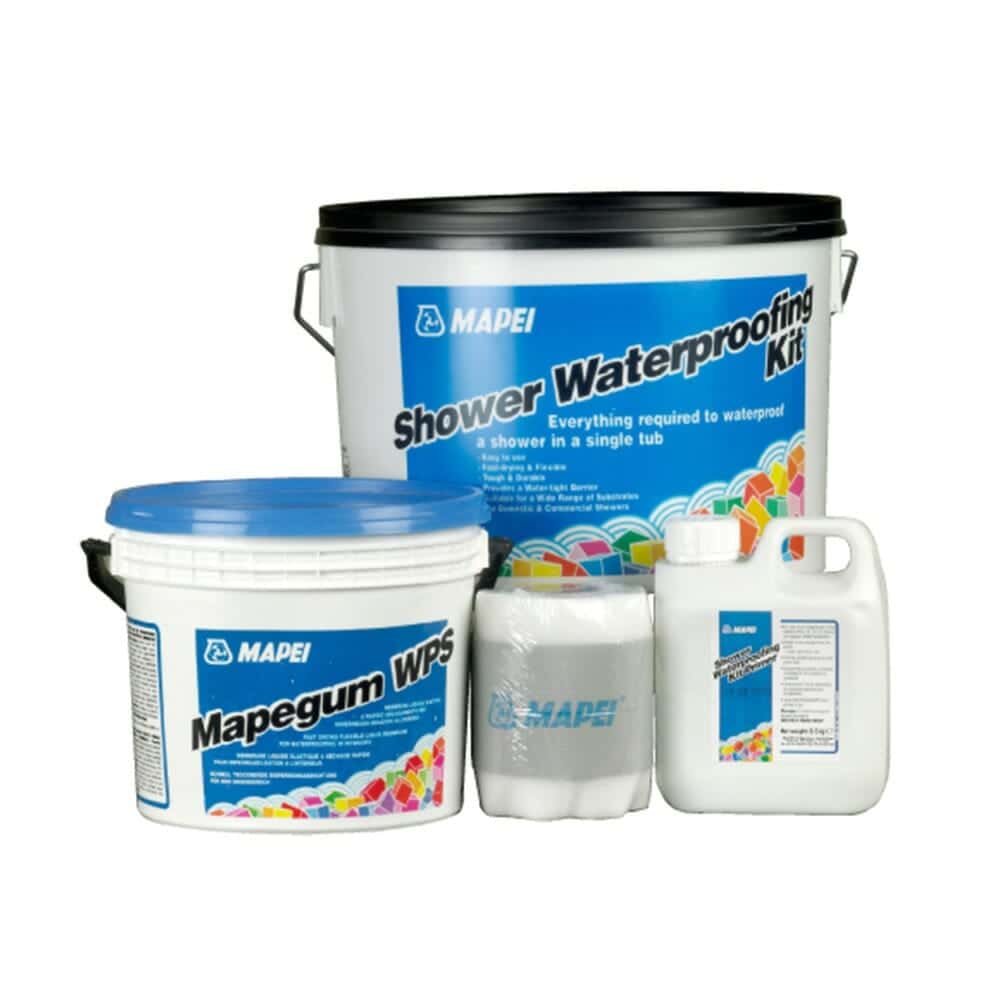

| Water Proofing | Mapeilastic |   23.2.2 23.2.2 |
